TR20 7.5T Roofing Forming Machine 380V PLC Color Coated Roofing Sheet Machine

Brand Name : DLY

Model Number : TR20

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 30sets/month

Delivery Time : 40 days

Packaging Details : naked or wooden

name : Roofing Forming Machine

Weight : around 7500kgs

Dimension(l*w*h) : 6000mm * 1600mm * 1500mm

Feeding width : 1250mm

Cutting blade material : Cr 12 MOV

material thickness : 0.3mm-0.8mm

Product name : metal tile roll forming machine

After-sales service provided : Engineers available to service machinery overseas,Online support

Contact Now

TR20 Trapezoidal 380V Roofing Forming Machine With PLC Automatic

1. Description of Roofing Forming Machine

Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.

2. Specifications of Roofing Forming Machine

Part details	Item Name	Specification
Material	Raw material	PPGI
Material	Thickness	0.3-0.6 mm
Machine	Roller station	18
	Shaft diameter	70 mm
	Shaft material	45# steel with 0.05mm chrome
	Roller material hardness 30-40 HRC	45# steel with 0.05mm chrome
	Machine size	About 9×1.5×1.3 m
	Machine weight	About 5.5 ton
	Machine color	As customer' request
	Working speed	10-20 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1 mm
	Material	Cr 12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main power	5.5 kw
	Pump power	4 kw
	Voltage	380v/50HZ,3P or customize as customer' request
Control system	PLC brand	Delta made in Twaiwan
	Screen	Touchable screen
	Language	Chinese and English or add language as customer need
Decoiler	Operation	Manual
	Weight capicatity	5 ton
	Price	Free as gift
Receiving table	Operation	Manual
	Length	3 m
	Price	Free as gift

3. Feathers of Roofing Forming Machine

We Will use the rubber roller at leveling part to protect the coil surface.
We will add two more gears for feeding coil smoothly.
For the roller, we will do the chroming for long time use and beautiful.
For cutting, we use 4 pillar post cutting system to make sure the cutter can use long time.
Use special special design of cutting system for cutting fast and the cutter can use long time.
Good quality hydraulic jacks.
Use strong thickness frame and holder.
We will give remoter for control machine easily.

4. Production Flow of Roofing Forming Machine

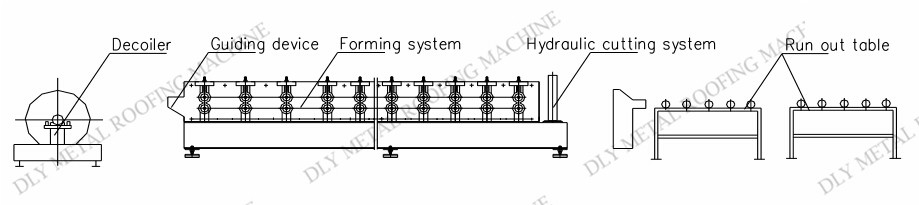

Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products

5. Details of Our Roofing Forming Machine

TR20 7.5T Roofing Forming Machine 380V PLC Color Coated Roofing Sheet Machine
